SceneMaster 8
Turn any space into a performance space!

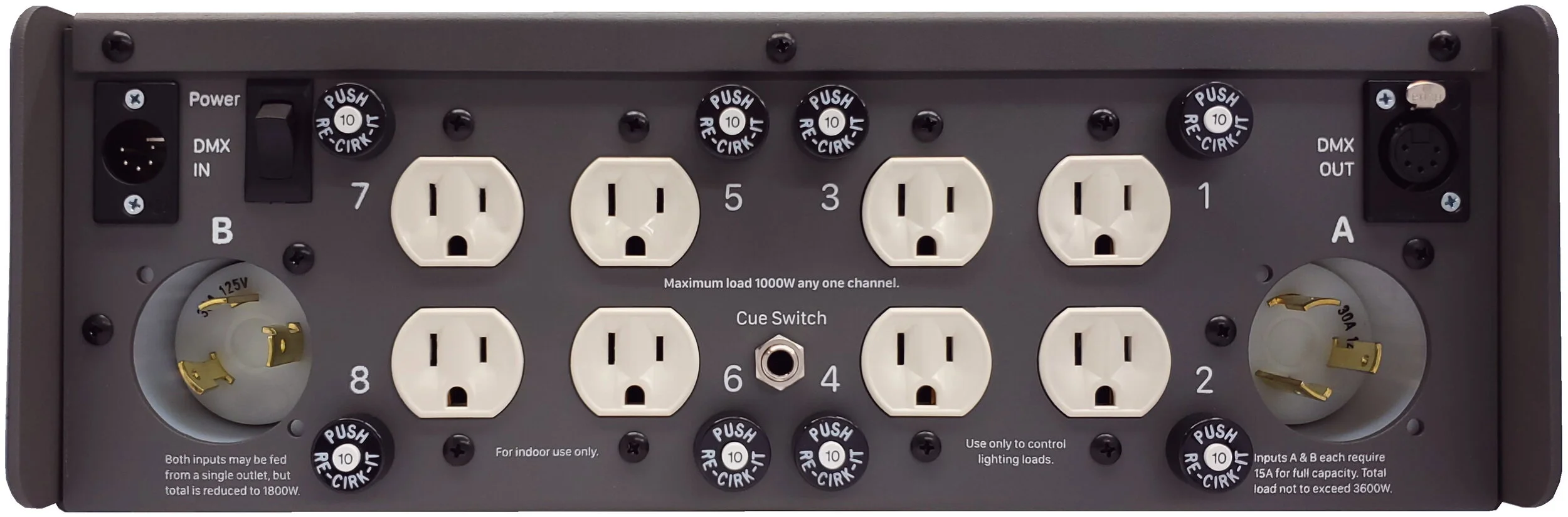

The SceneMaster8 is a rugged, portable, easy-to-use DMX console with eight 1000 Watt dimmers built in to a single easy to carry package. It features twelve control channels with bump buttons that can be soft patched to a full universe of DMX-512 outputs. Very easy to setup and use, it requires just two wall outlets for power. With 8 single U-Ground (Edison) outlets in the back, output loads plug right in. Add a foot switch for hands-free crossfades.
Features
All-in-one control and dimmer
Eight dimmers, up to 1000 Watts on any channel
Outlet for each dimmer
DMX512 In and Out
Control DMX LEDs & Incandescent lights
Proportional soft patching
Programmable show cues
SD Card included to save cues and settings
Grandmaster & Black Out controls
Split crossfader
12 control sliders & bump buttons
Remote foot switch option for crossfades
Requires only one wall outlet for the console and 4 dimmers, second outlet needed for all 8
Available with 15A, 20A, or 30A inlets
Comfortable handle for transport
Enclosure flanges protect controls and connectors when resting on flat surfaces.
Dim: 15” x 10” x 5.5”, 13 pounds
The SceneMaster 8 is available in three versions to accommodate power connection options.
SM806-SUG
15A U-Ground (Edison) Inlets, up to 1800W on each of two sets of four outlets.
SM808-SUG
20A Twist-Lock Inlets, up to 2400W on each of the two sets of four outlets.
SM810-SUG
30A Twist-Lock inlets, up to 3600W on each of the two sets of four outlets.
Optional Footswitch
